HAK36 CNC Hydraulic NC Turret Featuring High Durability Fast Tool Changing Speed and Compact Structure with Smooth Operation

Name: HAK36 CNC Hydraulic NC Turret Featuring High Durability Fast Tool Changing Speed and Compact Structure with Smooth Operation
Brand: LINGMAN
Price: 1700 USD

Wholesale HAK36 CNC Hydraulic NC Turret Featuring High Durability Fast Tool Changing Speed and Compact Structure with Smooth Operation from china suppliers

Brand Name : LINGMAN

Model Number : HAK36 series

Certification : Provided

Place of Origin : China

MOQ : 1 Set

Price : USD 1700 set

Payment Terms : T/T, L/C

Supply Ability : 500 set per month

Delivery Time : 10-15 work days

Packaging Details : Wood carton

Model : HAK36 series

Size : HAK36050/HAK36063A/HAK36080A/HAK36100/HAK36125/HAK36160

Center height : 50/63/80/100/125/160

Number of tools : 8T/10T/12T

Load-bearing(including disc) : 25/40/60/120/180/280

Max.tangential torque : 500/1000/1200/2200/3200/5200/11000/18000

Max.off load moment : 6/10/15/40/60/120

Contact Now

HAK36 CNC Hydraulic NC Turret Featuring High Durability Fast Tool Changing Speed and Compact Structure with Smooth Operation

1. Description

Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.

Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.

The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.

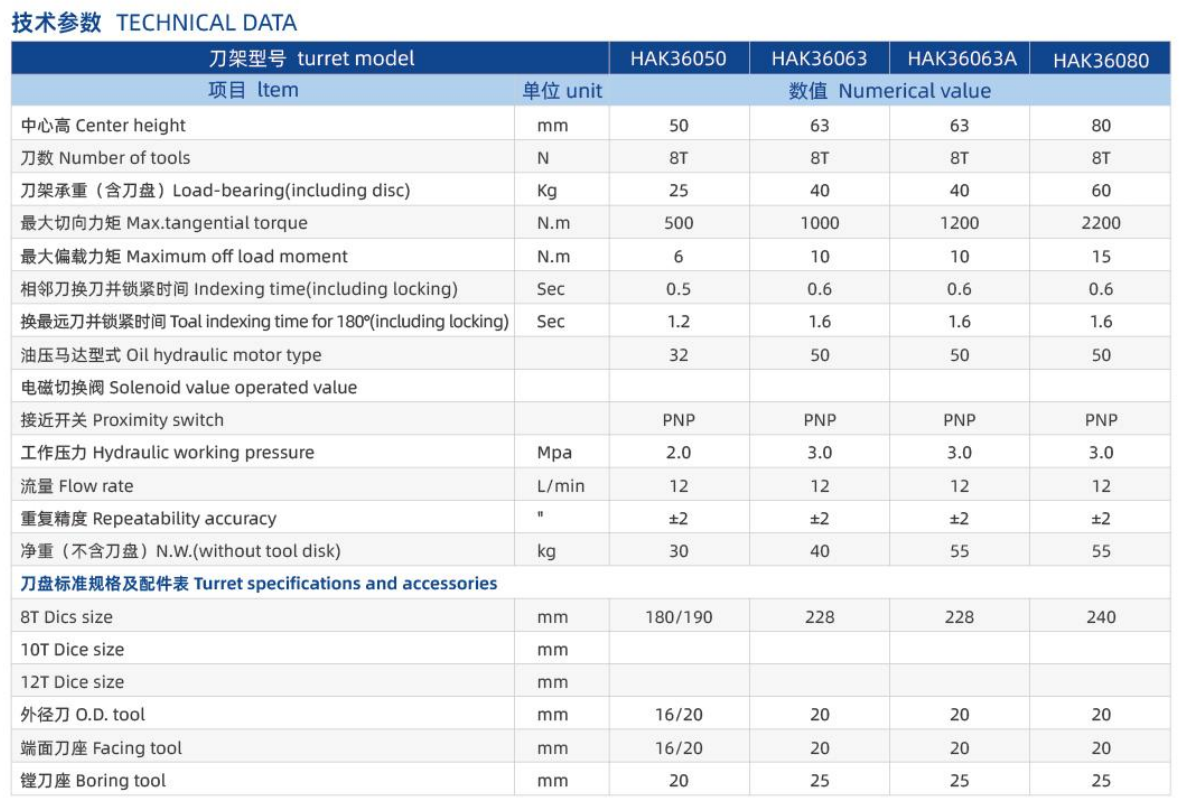

2. Performance Parameters

Model	HAK36 series
Size	HAK36050/HAK36063A/HAK36080A/HAK36100/HAK36125/HAK36160
Center height	50/63/80/100/125/160
Number of tools	8T/10T/12T
Load-bearing(including disc)	25/40/60/120/180/280
Max.tangential torque	500/1000/1200/2200/3200/5200/11000/18000
Max.off load moment	6/10/15/40/60/120

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

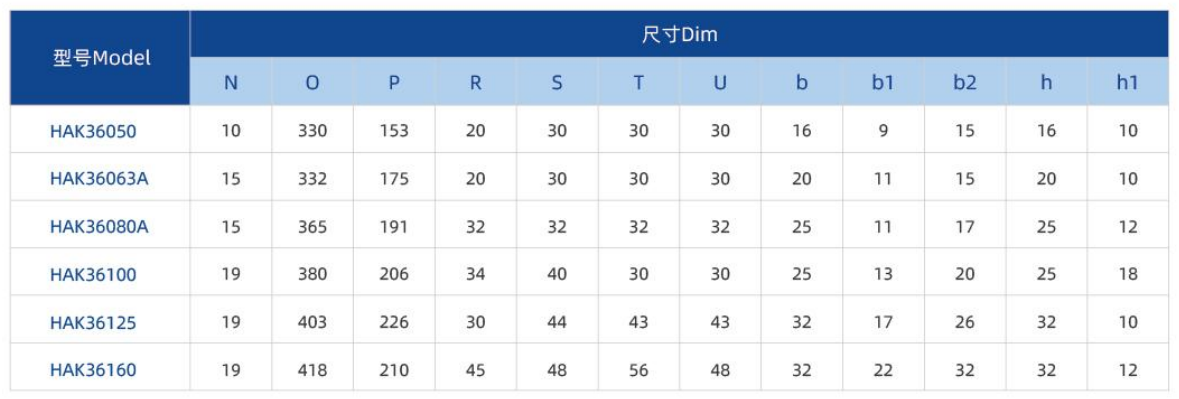

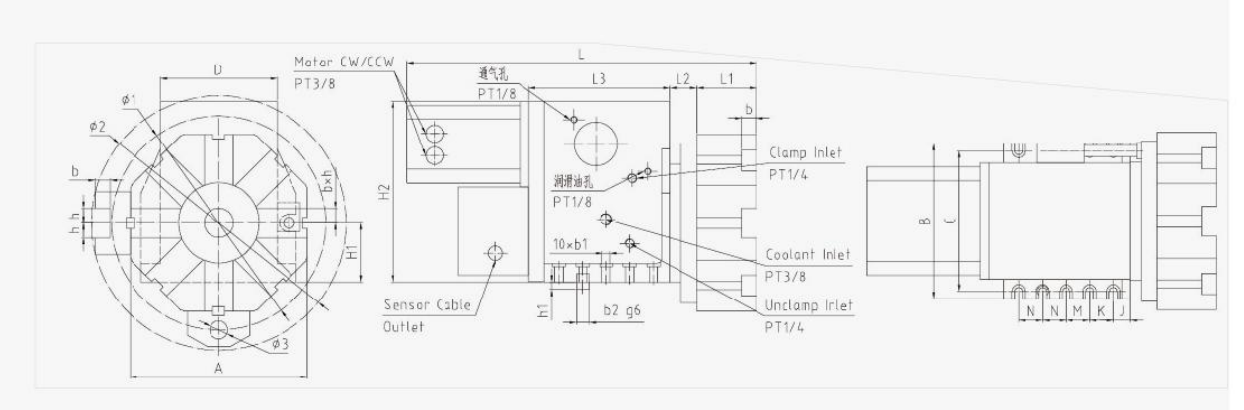

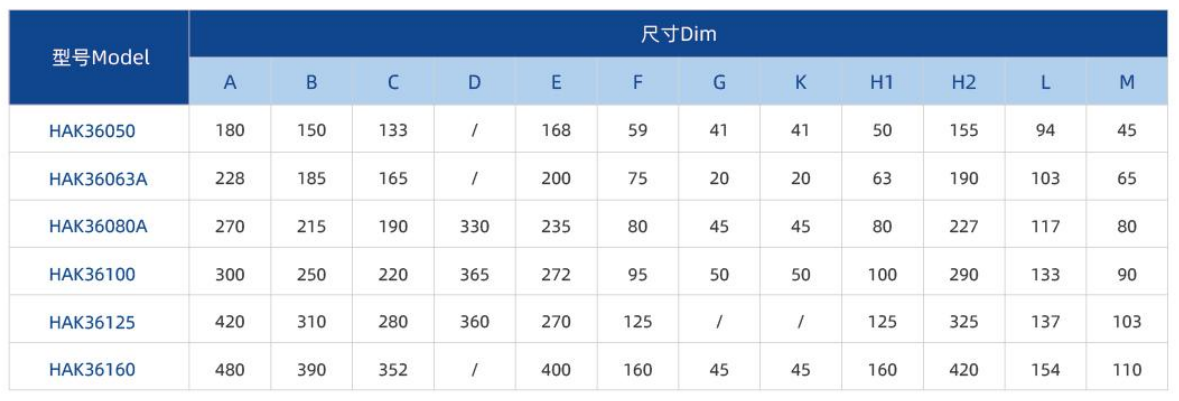

3. Dimensions

HAK36 CNC Hydraulic NC Turret Featuring High Durability Fast Tool Changing Speed and Compact Structure with Smooth Operation

4. Advantages

a. Full stroke design

b. Wide range of applications, diversification of processing profiles

c. High repetitive positioning accuracy

d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

5. Our Service

a. We are the direct factory with good price and fast lead time.

b. Professional design team work with you.

c. Professional QC team to guarantee the high quality.

d. Providing OEM & ODM service.

6. Production Line

HAK36 CNC Hydraulic NC Turret Featuring High Durability Fast Tool Changing Speed and Compact Structure with Smooth Operation Images
