Model Number :G400S-165
Brand Name :Laser Chuck
Place of Origin :Jiangsu, China
Certification :Reach
MOQ :1
Price :$2,400-2,600
Material :Steel, Stainless Steel
Number of jaws :4
Power type :Manual
Diameter :140mm
Limit speed :500 r/min
Clamping range :0-160mm
Central height :260mm
Rotational inertia :1.85 kg.m2
Rotating part weight :82kg
Whole unit weight :95kg
Claw stroke :140mm
Model :G400S-165
Length A :460
Length B :260
Length C :515
Contact Now
Product Description

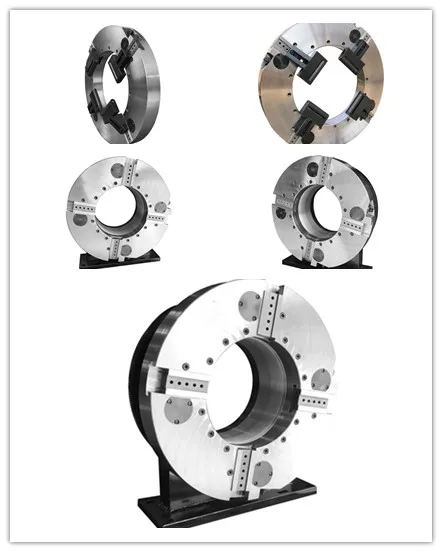

Laser Pipe Cutter Chuck Manual Laser Main Chuck for Laser Pipe Cutting Machine
The product is specially designed for laser pipe cutter. The product itself can be used as an independent spindle with manual chuck in the middle. After the base of the product is fixed, the rotary fuction can be realized only by connecting the matched motor with the gear. Manual control of two groups of claws can clamp the workpiece tightly and drive the workpiece to rotate.
Because of the length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and the tail chuck matched with it are usually installed in pairs on the equipment. The product is a four-claw dual-power two-two-center structure, which can clamp the circular, square, rectangular, elliptical and other centrally axisymmetric parts.
The center of the product is of hollow structure. It is recommended to be installed on the tubesheet integrated machine.
Performance Parameters
Model
G400S-165
Claw stroke
140mm
Maximum clamping force
/
Limit speed
500 r/min
Clamping range
0-160mm
Central height
260mm
Rotational inertia
1.85kg.m2
Rotating part weight
82kg
Whole unit weight
95kg

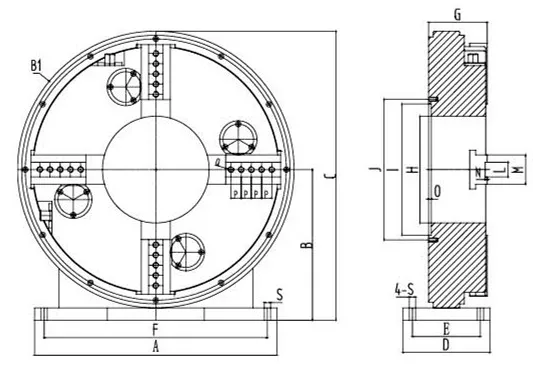

Dimensions
Specifications
A
B
B1
C
D
E
F
G
H
I
J
L
M
N
O
P
Q
R
S
G400S-165
460
260
480
515
120
80
420
100
165
220
240
30
60
4
5
20
M10
8-M8
14
Advantages 1.Full stroke design
2.Wide range of applications, diversification of processing profiles
3.High repetitive positioning accuracy 4. Low maintenance cost, long service life 5. multiple configurations are available 5.1 Solid or hollow
5.2 Comb-type or mortise-groove type claws
